Window patching machine is used for pasting the flat film (bopp, pet, pvt) on paperboard, corrugated board, laminated board to make the high value carton for packaging.
- Max. speed 200m/min (36000pcs/hour) with continuous operation speed of 32000pcs/hour (185m/min) for 24/7 stable production.

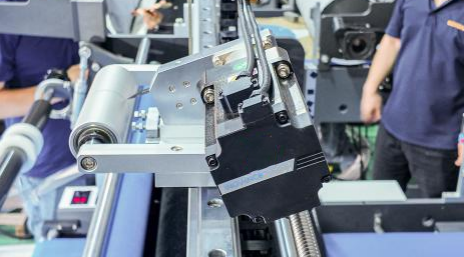

- Full servo drive with propietary technology to make the high precision film accuracy control.

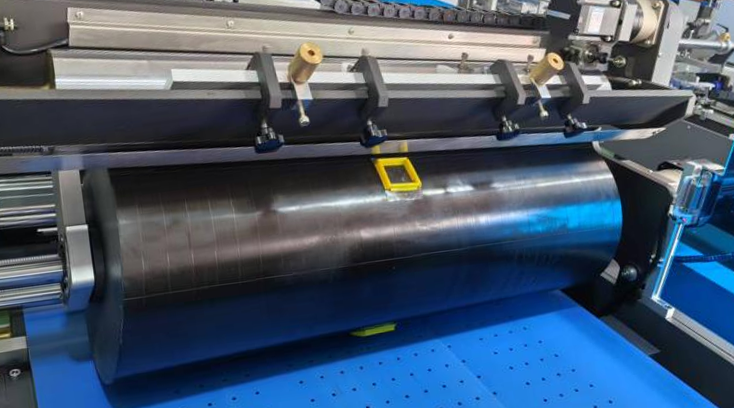

- Intelligent operation to make one touch control by touch screen, glue application, film feeding and cutting size automatically.
- Autoamtic counter stacker to make the collection easily.
Technical Data:
| Model |

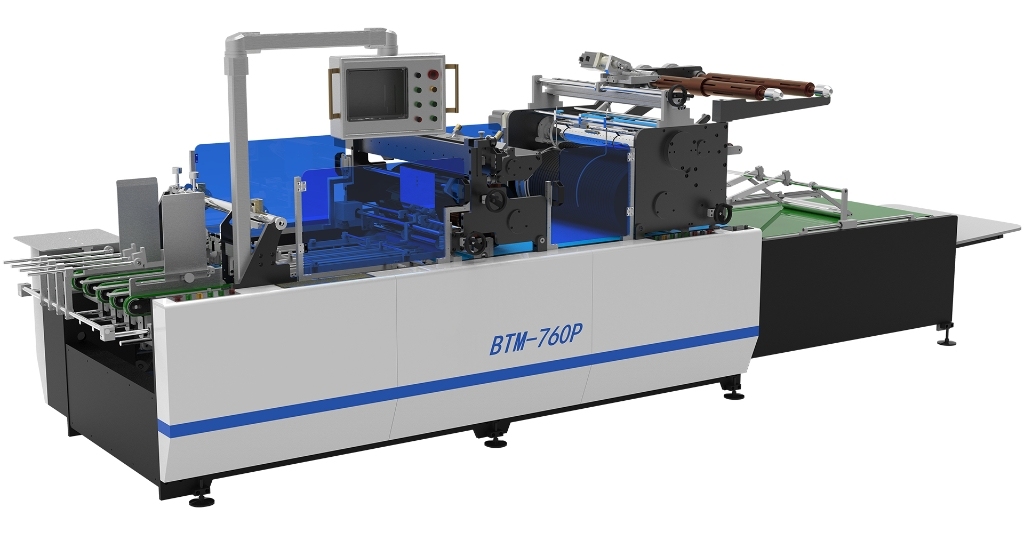

BTM-760P |
BTM-950P |
BTM-1100P |
| Max. sheet |
760x760mm |
950x760mm |
1100x760mm |
| Min. sheet |
100x150mm |
100x150mm |
100x180mm |
| Speed |
upto 12000pcs/h
(0~760mm);
upto 24000pcs/h
(0~420mm);
Upto 36000pcs/h
(0~260mm);
|
upto 12000pcs/h
(0~760mm);
upto 24000pcs/h
(0~420mm);
Upto 36000pcs/h
(0~260mm);
|
upto 10000pcs/h
(0~760mm);
upto 24000pcs/h
(0~420mm);
Upto 36000pcs/h
(0~260mm);
|
| Window dimension (W*L) |
30*50mm ~ 500*450mm |
30*50mm ~ 500*450mm |
30*50mm ~ 500*450mm |
| Paper weight/thickness |
Cardboard: 200~2000gsm
Corrugated board: 1~4mm
|
Cardboard: 200~2000gsm
Corrugated board: 1~4mm
|
Cardboard: 200~2000gsm
Corrugated board: 1~4mm
|
| Film thickness |
PET: 0.03~0.2mm;
PVC: 0.03~0.25mm
|
PET: 0.03~0.2mm;
PVC: 0.03~0.25mm
|
PET: 0.03~0.2mm;
PVC: 0.03~0.25mm
|
| Positioning accuracy |
+-1mm |
+-1mm |
+-1mm |
| Machine weight |
3ton |
3.3ton |
4ton |
| Machine dimension |
5500*1550*1800mm |
5500*1550*1800mm |
6300*1920*1800mm |
| Power supply |
21kw, 380V, 50HZ |
21kw, 380V, 50HZ |
21kw, 380V, 50HZ |
