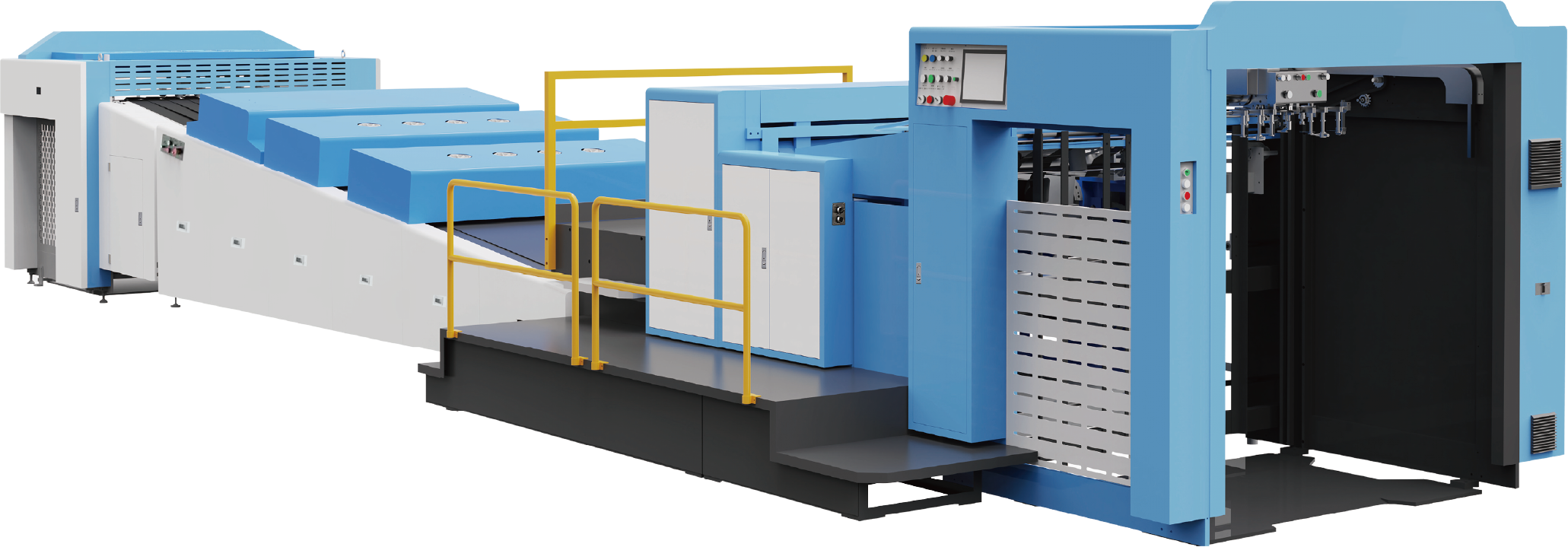

SPOT UV COATING MACHINE
Advantages:
The uv coating machine can do the spot uv, or full page coating, to make printed paperboard more vibrant and textured.
The advantage of spot uv machine which can save a lot of ink cost compared with screen printing machine.
Usually, many printed paperboard with film lamination, it is not good for the environment. And it is not good for gluing as the film is not easy to paste without plasma device. The spot uv machine can do the full page coating without the tape area, then no need plasma device to add at folder gluer machine.

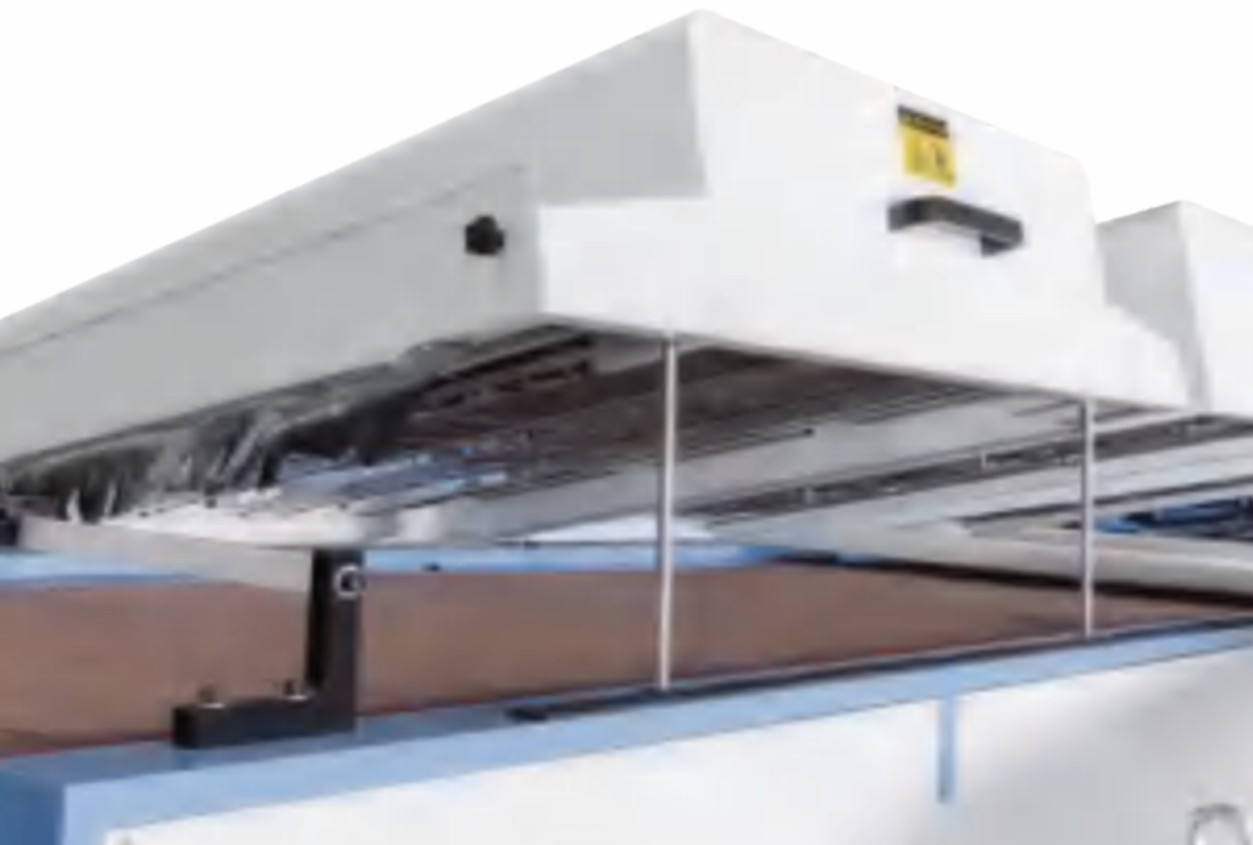

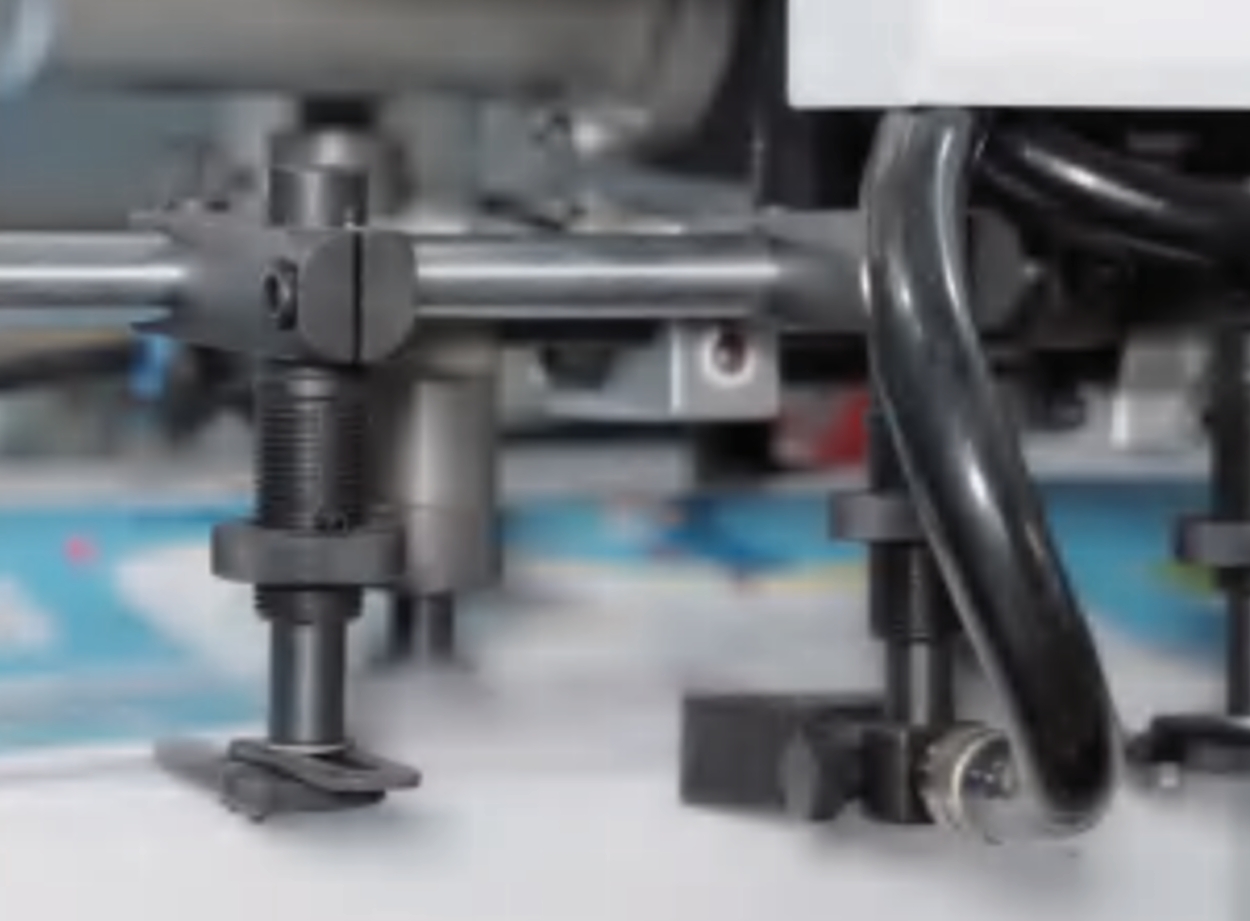

Fengchi high-speed spot UV coating machine adopts the gripper bar to transport paper, and can quickly feed more than 8,000 sheets of paper per hour. It is equipped with an intelligent mesh belt transmission with UV curing/infrared drying system and hot air dyring system, which can effectively improve the flatness of paper varnishing. It has the advantages of high production efficiency, precise positioning, high UV curing efficiency, and low energy consumption.
After the paper passes through the coating oil head, the paper receiving teeth are not irradiated by the UV light source at high temperature, and are directly transported by the Teflon mesh belt, which ensures that the teeth will not be deformed and damaged, and the maintenance is simple and low maintenance cost.
Please kindly contact us with your paperboard simple. Let us support you to find the right UV coating solution together!
Technical Data:
| Model | TY-1060W-L / 106W | TY-1460W | TY-1650W |
| Max. sheet | 740x1050mm | 1100x1450mm | 1300x1650mm |
| Min. sheet | 310x406mm | 350x460mm | 400x460mm |
| Max. coating area | 730x1040mm | 1090x1440mm | 1290x1640mm |
| Coating registration precision | ±0.15mm | ±0.15mm | ±0.15mm |
| Coating thickness | 0.15-0.60mm | 0.15-0.60mm | 0.15-0.60mm |
| Sheet thickness | 80-500gsm | 105-600gsm | 12-600gsm |
| Production speed | 6500-8000 sheets/h (depends on sheet size & quality) | 5000-6000 sheets/h (depends on sheet size & quality) | 4000-5000 sheets/h (depends on sheet size & quality) |
| Machine dimension |
W-L: *w*h 13225x2260x2100mm W: l*w*h 10625x2260x2100mm |
l*w*h 11800x3400x2300mm |
l*w*h 12840x3400x2360mm |
| Machine weight | (W-L)8200kg; (W) 7600kg | 10200kg | 12000kg |
| Power supply | 44kw (oil based)/ 40kw (water based) | 68kw (oil based /water based) | 76kw (oil based/water based) |

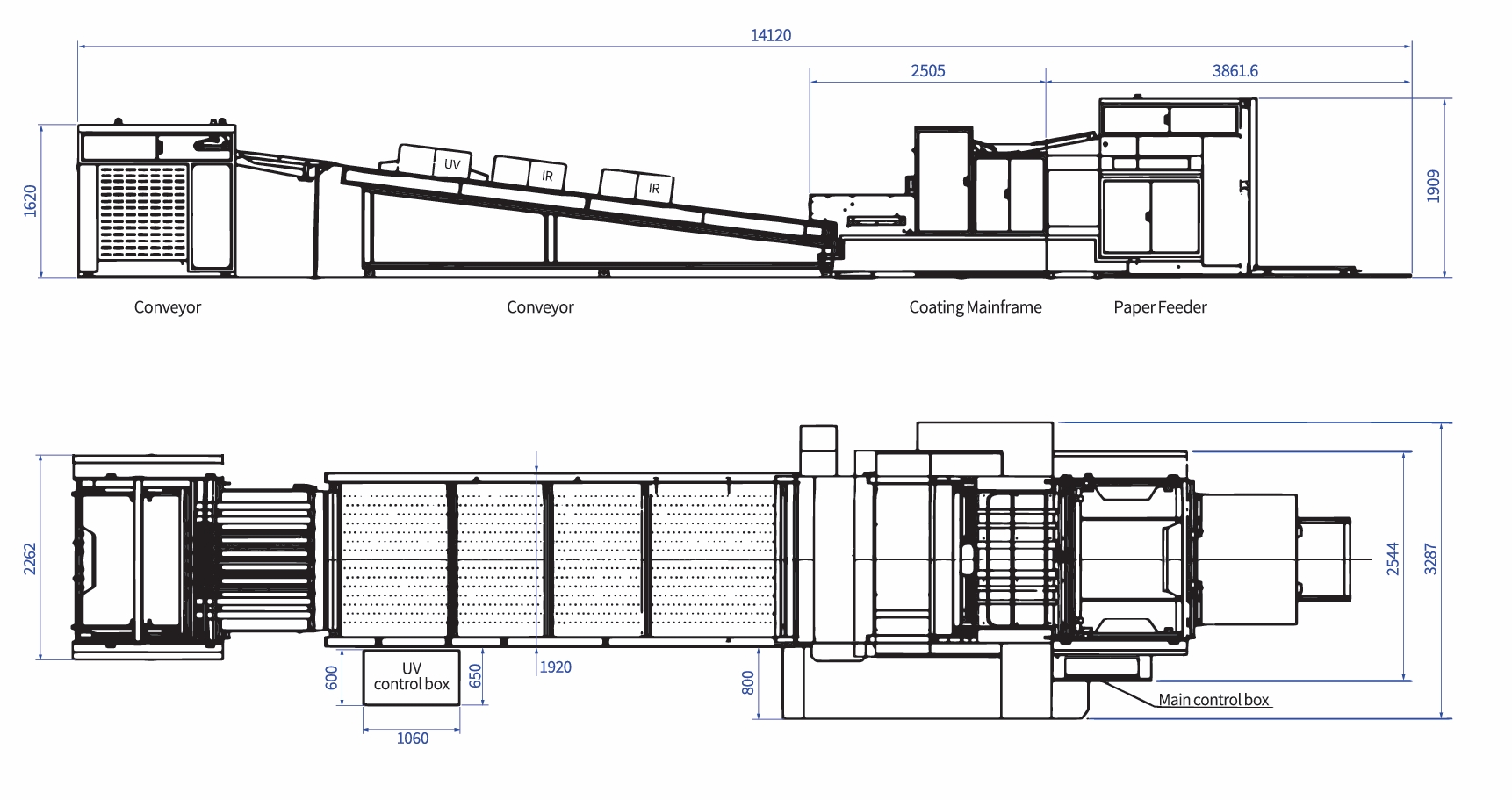

Machine Layout:
