Intelligent control, quick set up, automatic glue control, max. speed 22000+ sheets/hour, high laminating accuracy of ±0.5mm, full computerized operation. Exclusive designed for cardboard laminating corrugated board of 2ply up to 7ply.
CONTACT US
productInfo
Product enquiry

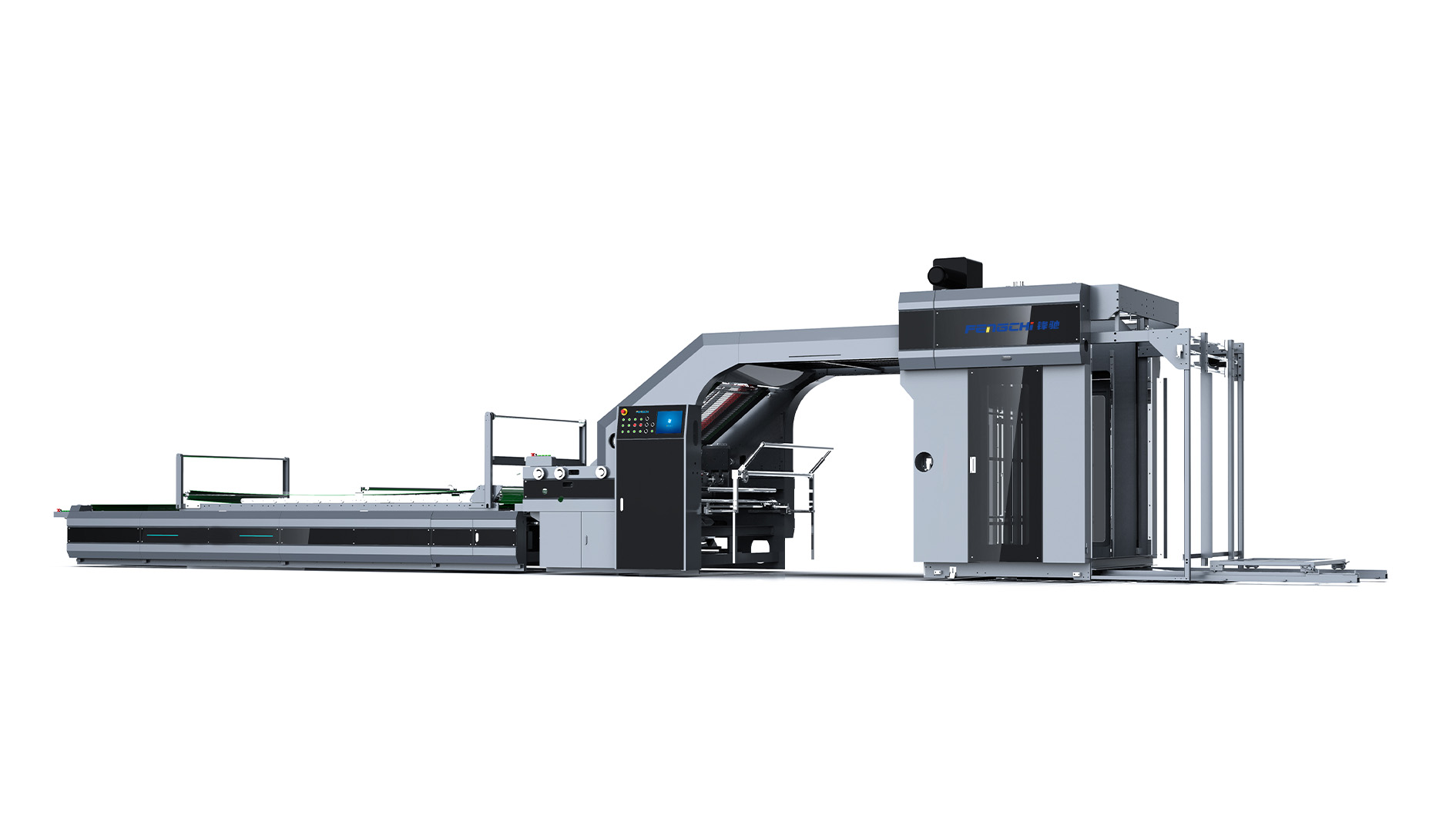

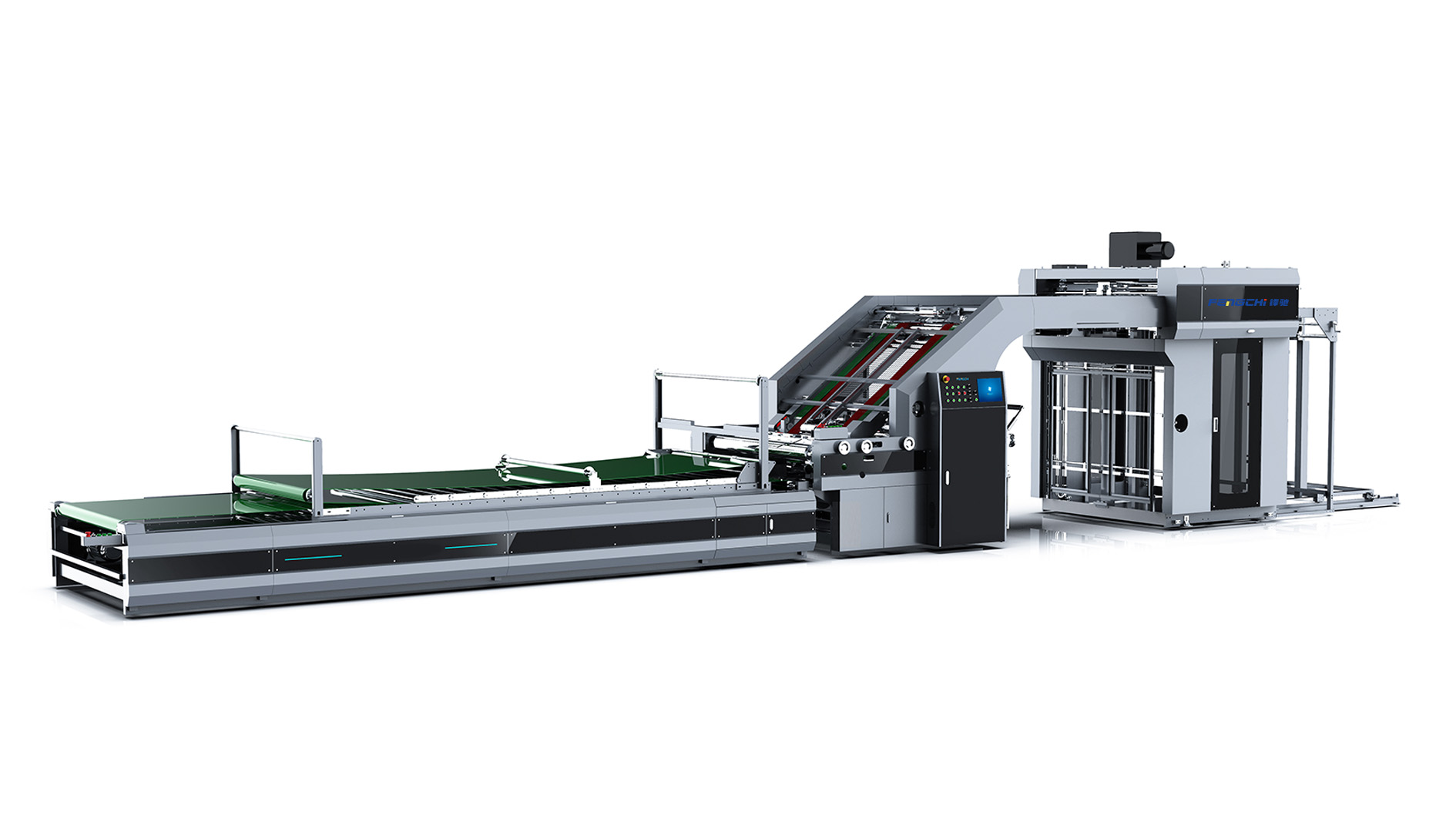

GW 1700L Intelligent High Speed Flute Laminator
Please leave us a message and we will get back to you as soon as possible
Email
Your message
You can give us more of your information so that we can provide you with more appropriate services
Name (Optional)
Phone (Optional)
Country/Region (Optional)

Product Information

Product Description



Technical Parameter

Models GW–1700L
Max. Sheet size (WxL) 1700mm x 1450mm
Min. Sheet Size (WxL) 420mm x 380mm

Sheet Thickness

Top paper: 150gsm ~ 700gsm

Bottom paper: F flute ~ 10mm

Max. Working Speed 16000 sheets/hour (165M/Min)
Laminating Accuracy ±1.0mm(Standard Sheet Paper)
Max. Working Speed Resin adhesive, starch glue and etc. (PH6~8 will be suitable for laminating glue)
Laminating Accuracy  ±0.5mm (standard sheet paper)
Applicable Glue Resin adhesive, starch glue and etc, (PH 6~8 will be suitable for laminating glue)
Machine Weight 8500kg
Power 380VAC/4P, 30kw
Diemension (L x W x H) 17.3m x 2.65m x 2.55m
Applicable Corrugated board High Strength Normalization 2ply (A,B,E,F flute), 3ply, 5ply, etc.

Note:

Machine speed and accuracy are depended on the paper quality, operation, etc.

In the interest of product improvement, the manufacturer reservses the right to change specifications, features and configurations without notice.



Detail Descriptions

Feeding System for Top Paper: (Servo Drive)

Adopting dedicated high-speed feeder to make sure that both the thick and the thin papers can be delivered rapidly and smoothly.

Lifting Platform for Top Paper

To assort with high-speed feeder, adopting high-intensive turbine reducer to ensure stability when speeding up instantly.

Carrier for Top Paper

Adopting paper-piling device, and feeding paper without stopping can reduce paper supplementing time and increase the working efficiency.

Pre-loading for Top Paper

Adopting imported linear guide way and lead screw to ensure the high precision, adjusting the sheet size automatically and saving the paper replacing time infinitely.

Feeding System for Bottom Paper

Unique servo vacuum feeding system makes it easy for damp deformed boards such as double wall and heavy duty boards that other paper mounting machines could not do before. It has changed the shortcomings of frequent replacement of perforated belts and greatly reduced the cost of use. And the 4-meter wide paper-feeding operation space allows you to keep as much board, making it easier to use the double walls and heavy-duty board.

Digital Adjustment System of Glue & Height of bottom board

Automatically adjust the quantity of glue and the height of the bottom board, and display the glue accurately on the screen in digital form to ensure the same quantity of glue for different batches of products, so that the quality control of laminated paper becomes simpler and easier. The automatic mixing system greatly reduces the dependence of enterprises on the operator and the quality difference caused by the level of the operator.

Paper Aligning System

Adopting advanced high-speed motion control servo tracking system to ensure laminating accuracy.

Mechanical Structure

All roller diameters are increased by 150 mm to ensure high speed without flying glue. Double-bearing automatic oil supply system greatly reduces mechanical failure and prolongs the service life of the machine. The front seat of the base paper is thicker to strengthen its ruggedness and durability.

 Operating System: (Digital Operating)

The whole electric control operating system adopts a self-developed motion control system to make the operation easier and relaxing, only need to input the sheet size through the touch screen and can be able to achieve the automatic adjustment, saving the paper replacing time and reducing the operative difficulty index, which shows the superiority of automation indeed.

Adopting well-known brand electrical and European CE standards.

It can realize remote monitoring and maintenance of equipment.
