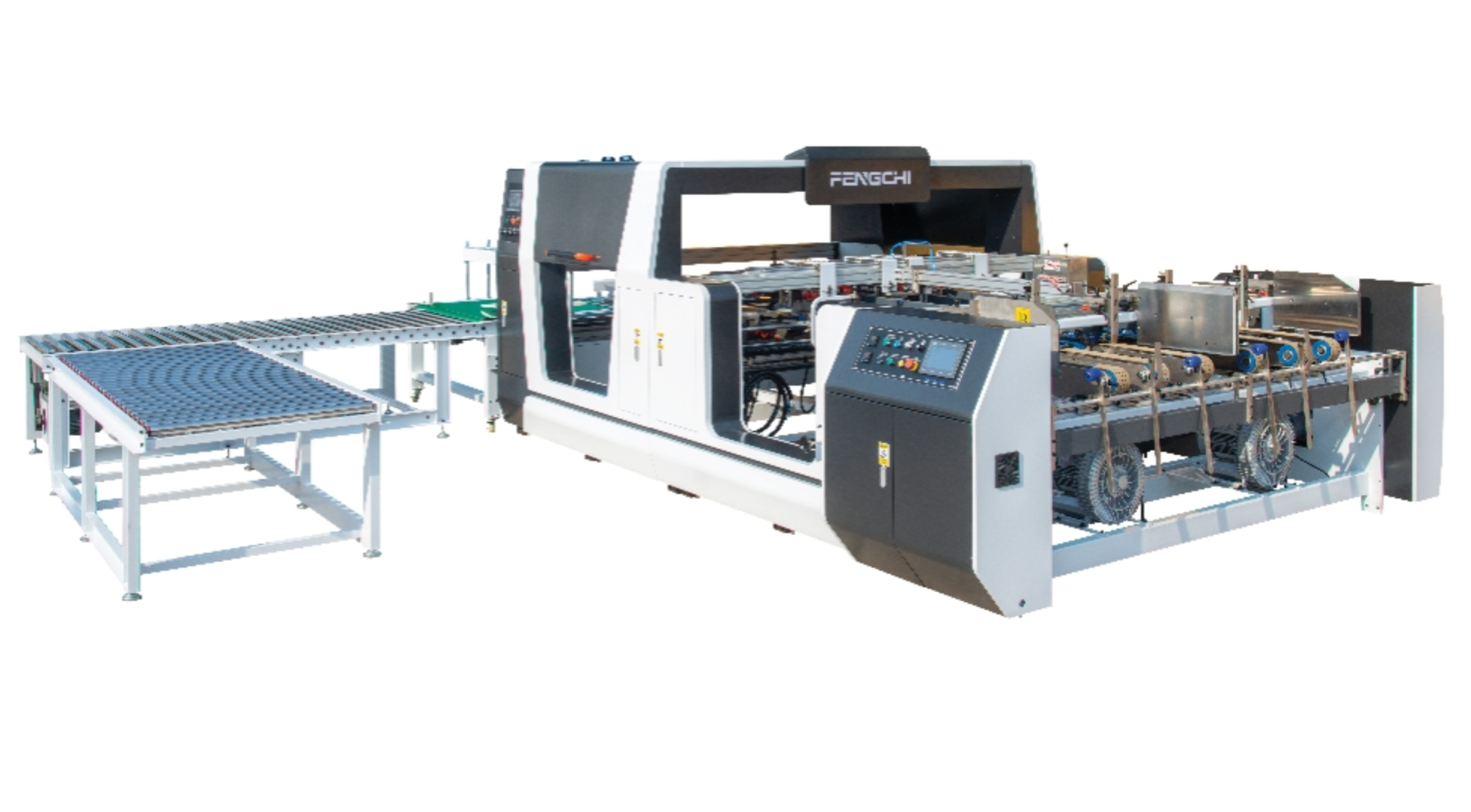

Double Pieces Folder Gluer
$0.00 USD
Quantity
Automatic two pieces foder gluer machine is used for making high value carton by hot melting glue or normal cold glue to paste the laminated sheet or corrugated sheet.

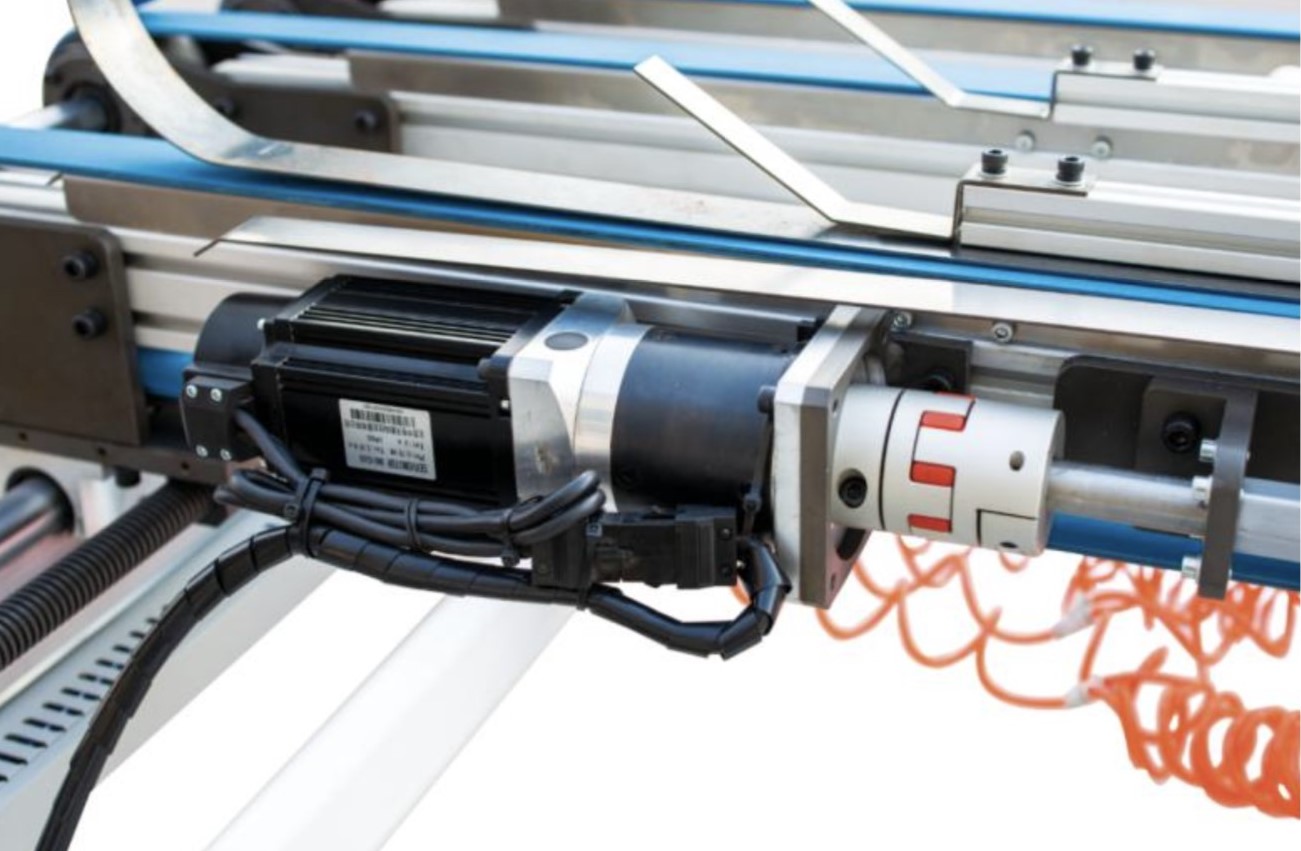

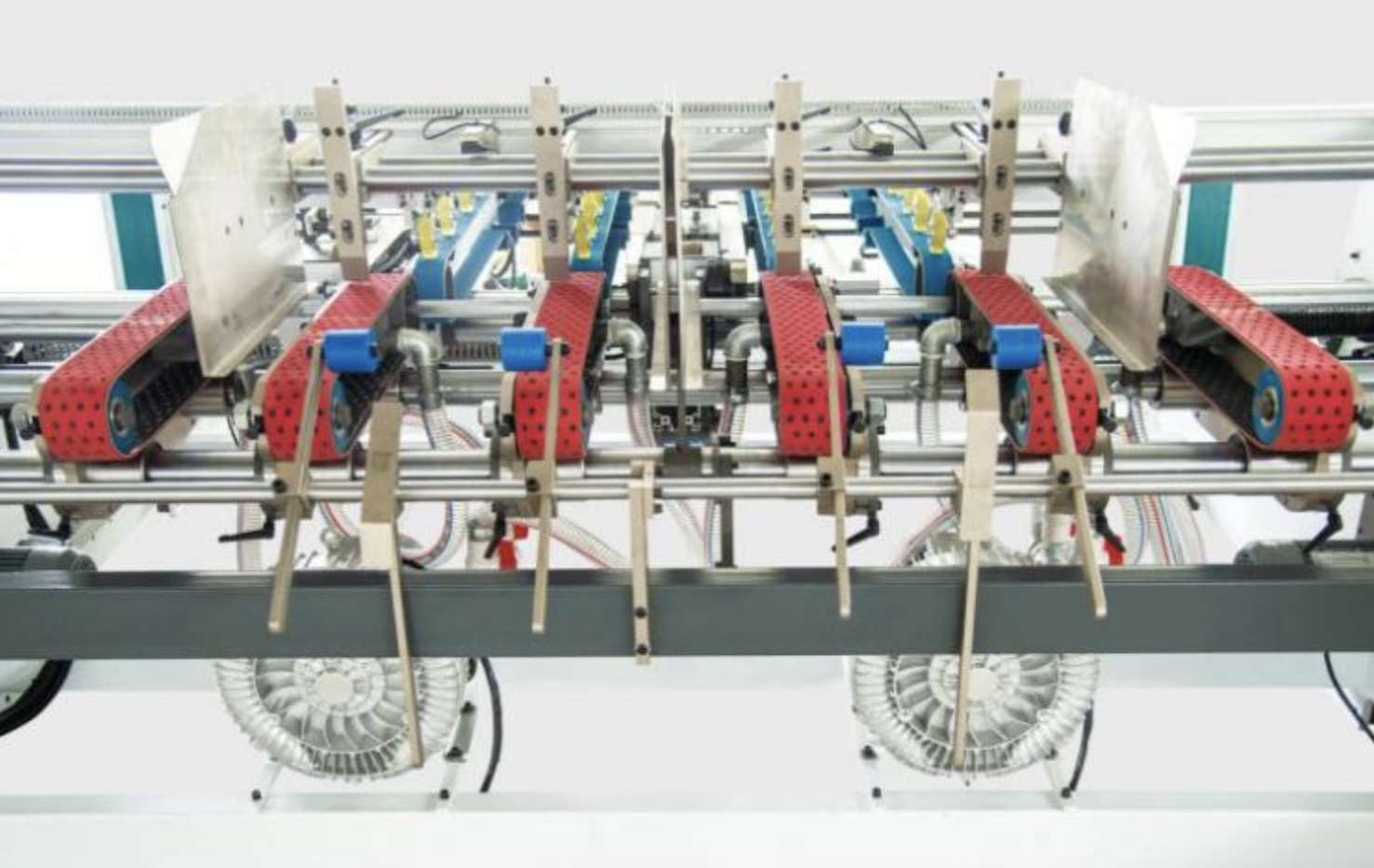

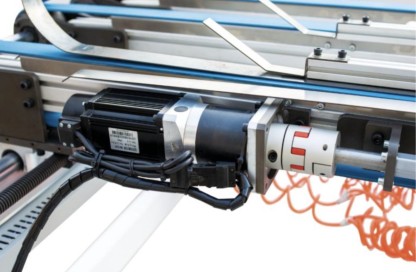

Updated 16 pcs full servo drive to make set up fast.
Machine arm to fold the corrugated board for high performance forming.
Square unit and press unit to make no fish tail box.
U turn converyor to make the production efficiently and save space and labor.
Technical Data:
| Model | FC-2300Z | FC-2300Z | FC-2300Z |
| Max. sheet | 1150x1150mm | 1300x1150mm | 1500x1200mm |
| Min. sheet | 750x350mm | 750x350mm | 750x350mm |
| Feeding pile height | 400mm | 400mm | 400mm |
| Registration accuracy | +/- 1mm | +/- 1mm | +/- 1mm |
| Sheet thickness | E flute to 10mm | E flute to 10mm | E flute to 10mm |
| Machine weight | 4.6 ton | 5 ton | 5.4 ton |
| Machine dimention | 4950x3300x1800mm | 4950x3800x1800mm | 4950x4200x1800mm |
| Power supply | 16kw, AC380V, 50HZ | 16kw, AC380V, 50HZ | 16kw, AC380V, 50HZ |

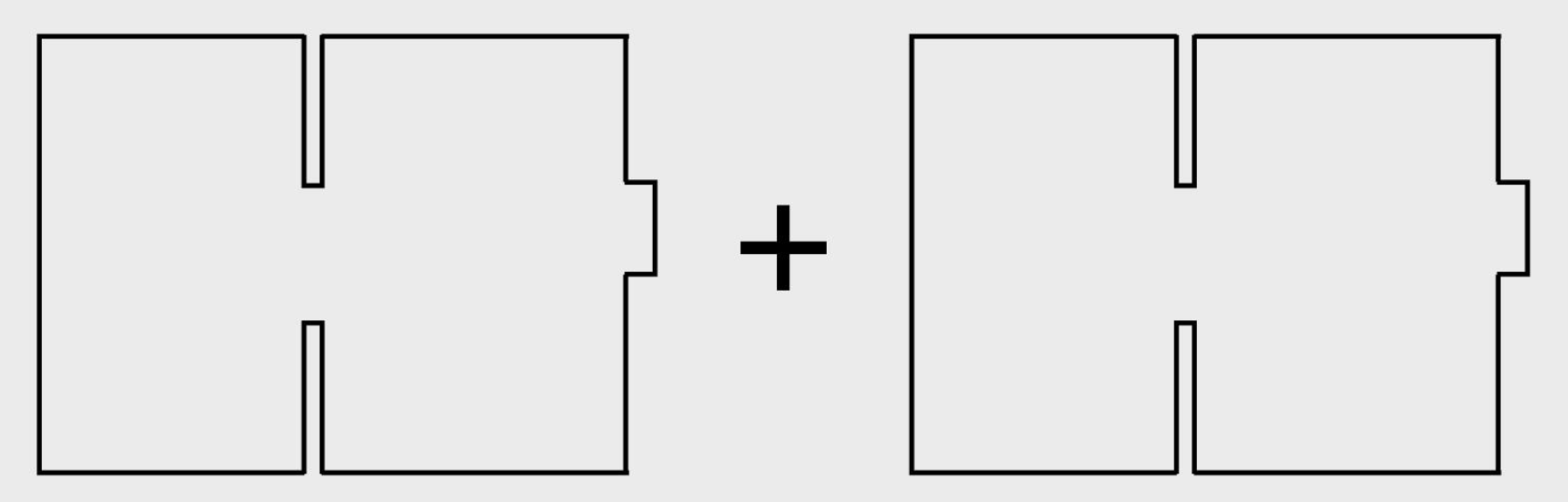

Regular Box: (AB Pieces)

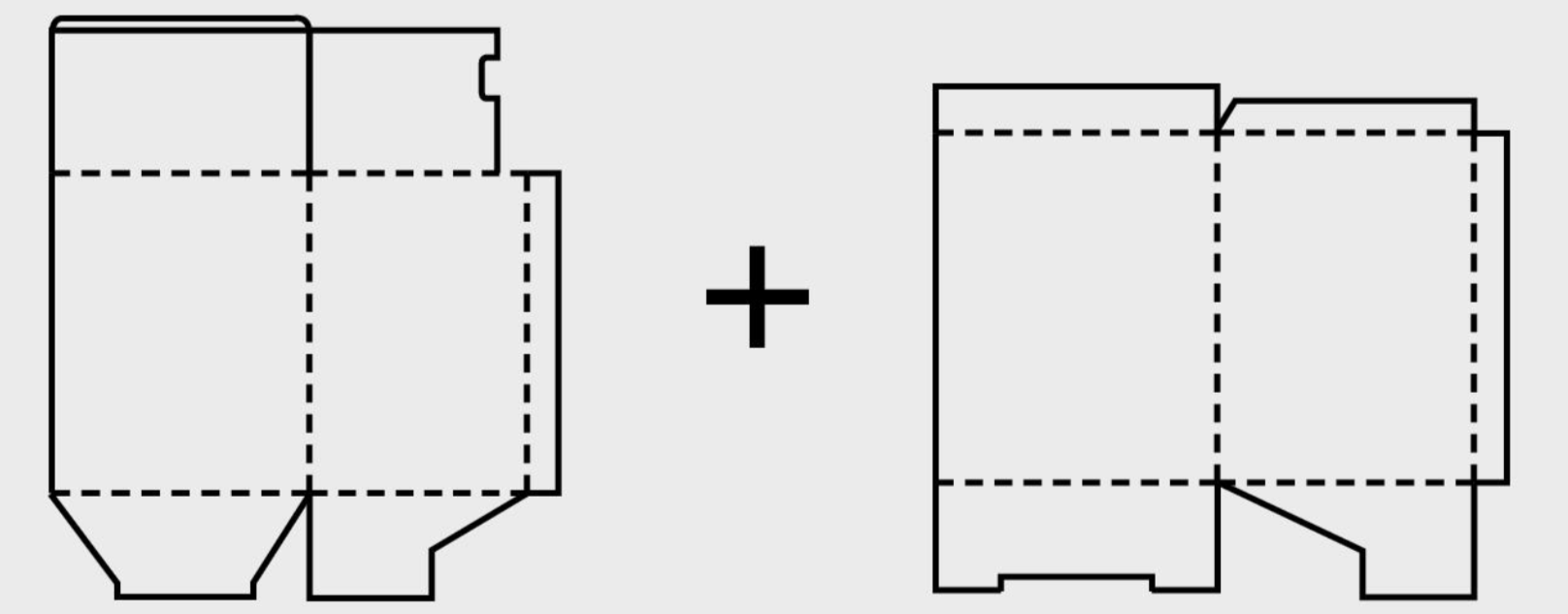

Irregular Box: (AB Pieces)

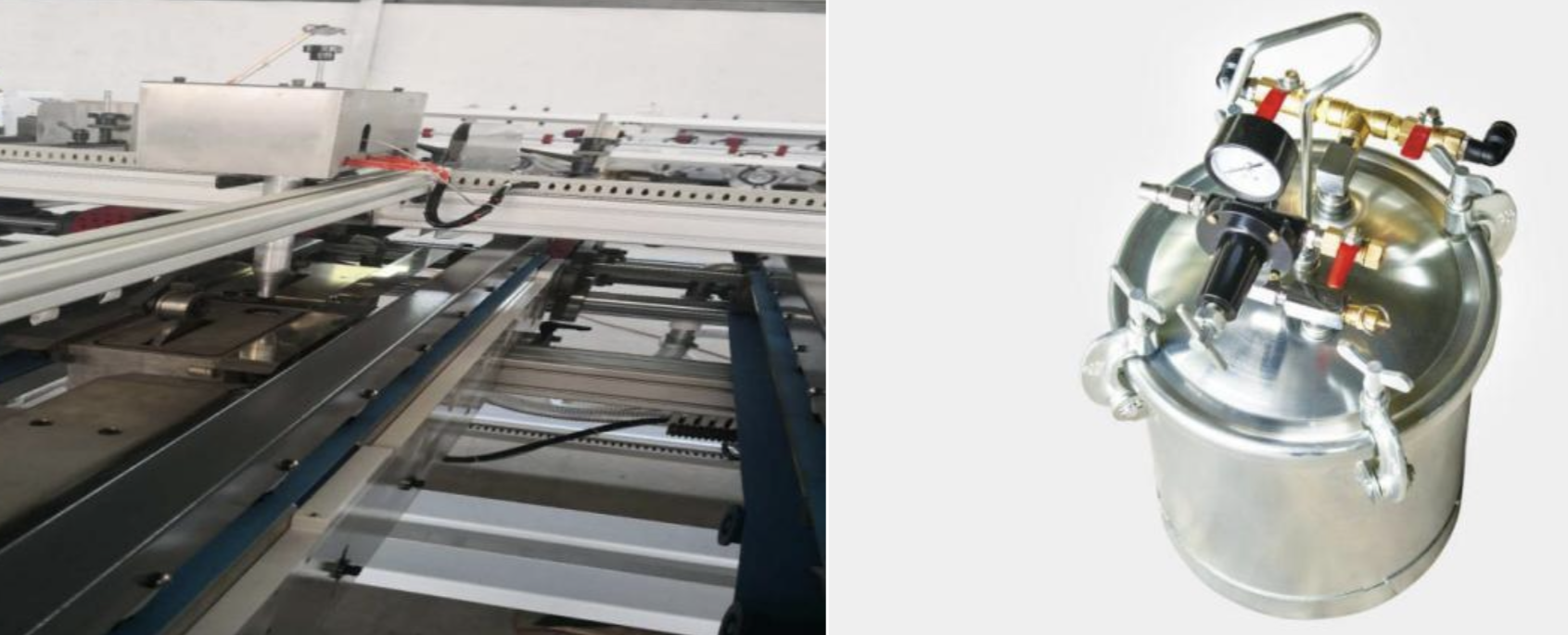

Hot Melting Glue System: (at middle join section)
