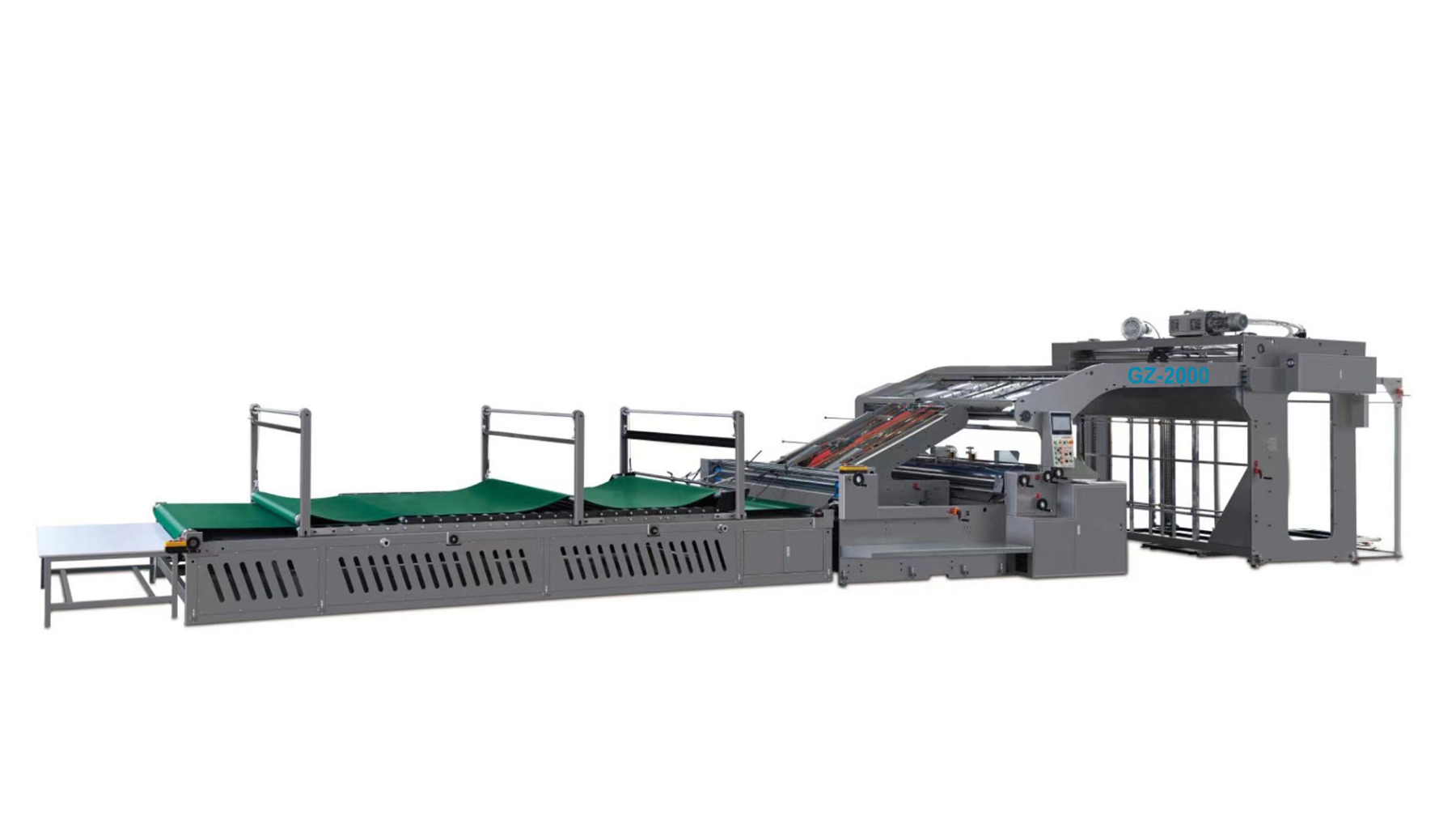

GZ 2000L Intelligent High Speed Paper Laminator

Perfect laminating accuracy of ±0.5mm with max. speed of 11000 sheets/hour, suitable for paper to cardboard, cardboard to cardboard, solid board to solid board, cardboard to corrugated board.
CONTACT US
productInfo
Product enquiry
GZ 2000L Intelligent High Speed Paper Laminator
Please leave us a message and we will get back to you as soon as possible
Email
Your message
You can give us more of your information so that we can provide you with more appropriate services
Name (Optional)
Phone (Optional)
Country/Region (Optional)

Product Information

Product Description



Technical Specification

Models GZ-2000L
Max. Sheet size (WxL) 2000 x 1650 mm
Min. Sheet Size (WxL) 420 x 380 mm

Sheet Thickness

Top paper: 150~700 gsm

Bottom paper: 300gsm ~ 8mm

Applicable Paper Thin paper, paperboard, coated paper, cardboard, etc
Corrugated Paper G, F, E, B, C, A flute 2ply, 3ply, upto 5ply
Max. Working Speed 11000 sheet/hour (depends on paper quality)
Laminating Accuracy  ±0.5mm (standard sheet paper)
Applicable Glue Resin adhesive, starch glue and etc, (PH 6~8 will be suitable for laminating glue)
Machine Weight 10000 kg
Power 380V/AC/ 3P, 26kw

Note:

Machine speed and accuracy are depended on the paper quality, operation, etc.

In the interest of product improvement, the manufacturer reservses the right to change specifications, features and configurations without notice.



Detail Descriptions

Feeding System for Top Paper

Adopting dedicated high-speed feeder to make sure that both the thick and the thin papers can be delivered rapidly and smoothly.

Lifting Platform for Top Paper

To assort with high-speed feeder, adopting high-intensive turbine reducer to ensure the stability when speeding up instantly.

Carrier for Top Paper

Adopting paper-piling device, feeding paper without stop which can reduce paper supplementing time and increase the working efficiency.

Pre-loading for Top Paper

Adopting imported linear guide way and lead screw to ensure the high precision, adjusting the sheet size automatically and saving the paper replacing time infinitely.

Feeding System for Bottom Paper

Adopting servo motor electric controlling system that with high sensitivity and speed, which can ensure no struck for paper and convey smoothly at high speed. Frequency converting control cooperate with radio-tube swift over to ensure bottom papers can be completely absorbed, which is easy to operate.

Operating System

The whole electric control operating system adopts self-developed motion control system to make the operation easier and relax, only need to input the sheet size through touch screen and can be able to achieve the automatic adjustment, saving the paper replacing time and reducing the operative difficulty index, which shows the superiority of automation indeed.

Paper Aligning System

Adopting advanced computer controlling system to calculate the sheet position and size and control the action of front claw, which can achieve the high-speed laminating accuracy. In addition, two side claws tracking all the way to reduce the no-loading time and improve the production efficiency.

About FENGCHI

About FENGCHI

Guangdong FENGCHI Printing Machinery Co., Ltd - High-tech enterprise located in Dongguan, a hub of 'International Manufacturing', boasting a 15,000m² factory with advanced processing and research institutions. Specializing in R&D, production, and sales of high-speed flute laminators and flip flop stackers, our team of experienced engineers and researchers with 20+ years in flute laminators and 35+ years in print pack industry consistently absorb leading-edge technology to meet and exceed customer expectations.

Success Cases

Paper to Cardboard

GE series is universal type for paper to cardboard, art board, cardboard to cardboard, paper to solid board and corrugated board. Full servo drive of top feeder, suction belt feeder with servo tracking system, offering high speed 14000+ pcs/hour.

Paper to Corrugated Board

Gw Series is heavy duty type, strongly for laminating corrugated board of G, F, E, B, C, A flute 2ply, 4ply, upto 10mm thickness, even warp board can be feed smoonthly with high speed. Full servo drive of top feeder, bottom feeder with tracking system provide 22000+ speed.

Jumbo Carton

Jumbo printed paper laminated to corrugated board (3ply, 4ply, 5ply), such as shoes box, TV box, by GW-2200L Intelligent High Speed Flute Lamiantor with lead edge feeder, greatly improved the production of jumbo box.
